The facade system MTC-v-350

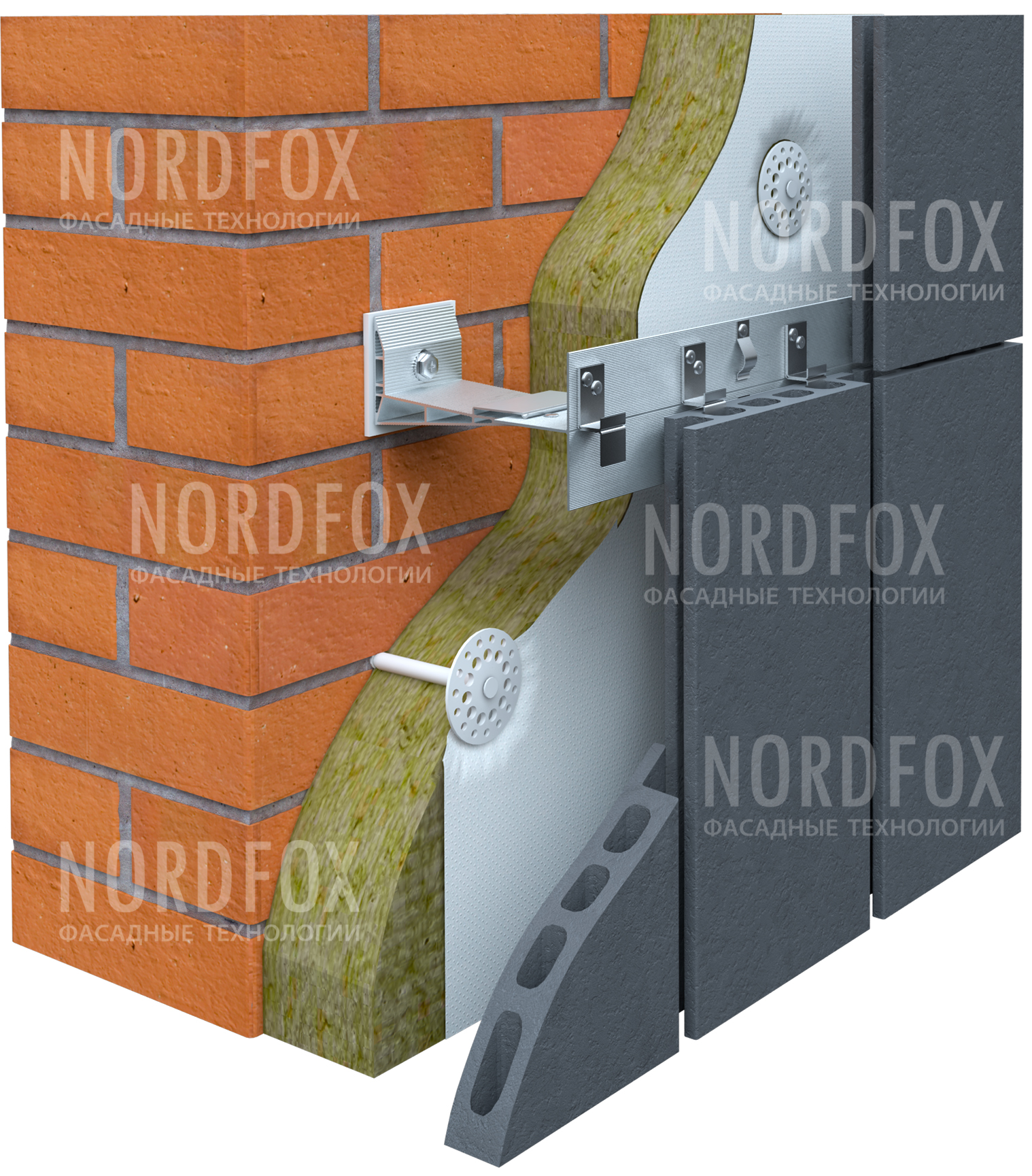

Fixing terracotta tiles vertically on a horizontal half-timbered

— Stainless steel clamps prevent vibration and displacement of the plates on the facade plane.
— Special bracket XFOX honeycomb structure for horizontal mounting fachwerk provides the necessary rigidity of the system.
— The horizontal location of the supporting profiles allows for significant system savings.
— Possible rapid installation and removal of plates.
— The process for mounting a facing material: clamps concealed mounting.
— Maximum size of the lining: 600h1800mm
— Location lining: vertical.
— Removal of the cladding material from the plane of the wall: 62—600mm
— Decisions of window frames: galvanized steel or cladding material
bracket mounting options:
— Standard — with fastening to the wall;
— Interstorey — a fixture in the ceiling.
